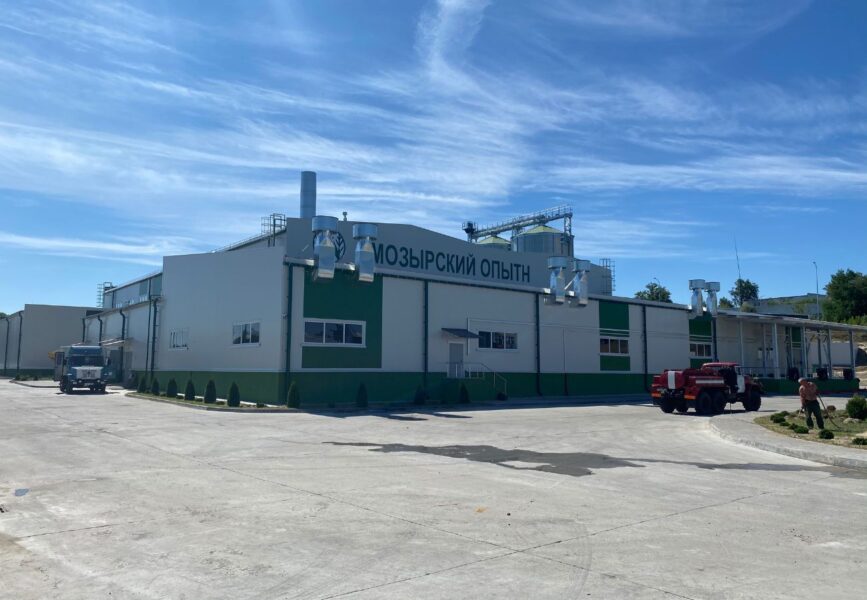

Mozyr, Belarus
Completion date: 03.2021

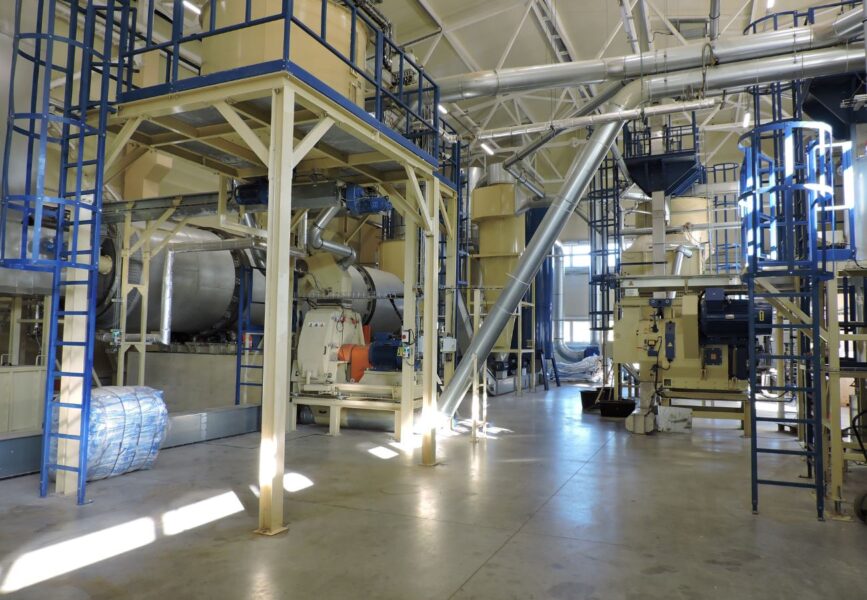

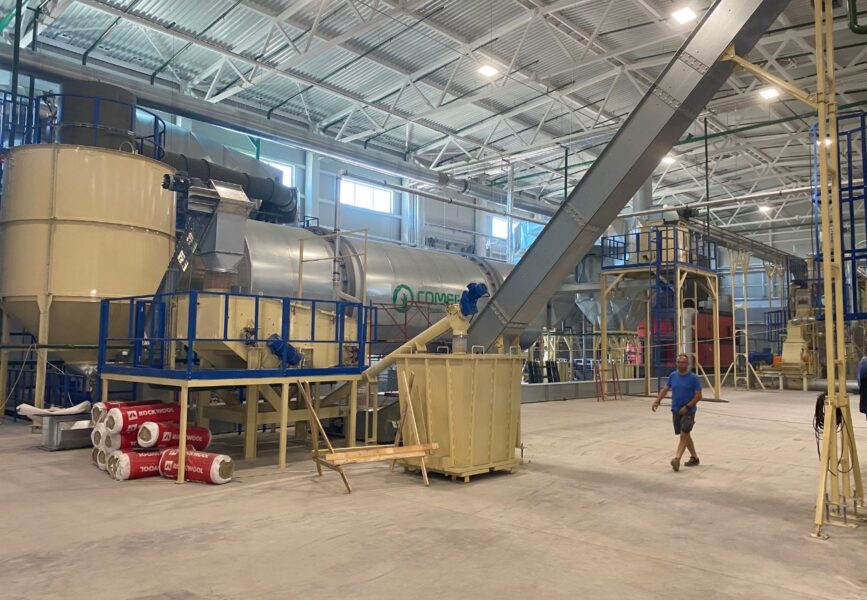

A pellet production line with a capacity of 5.0–5.5 t/h based on wet chips and sawdust. The main equipment included in the line consists of:

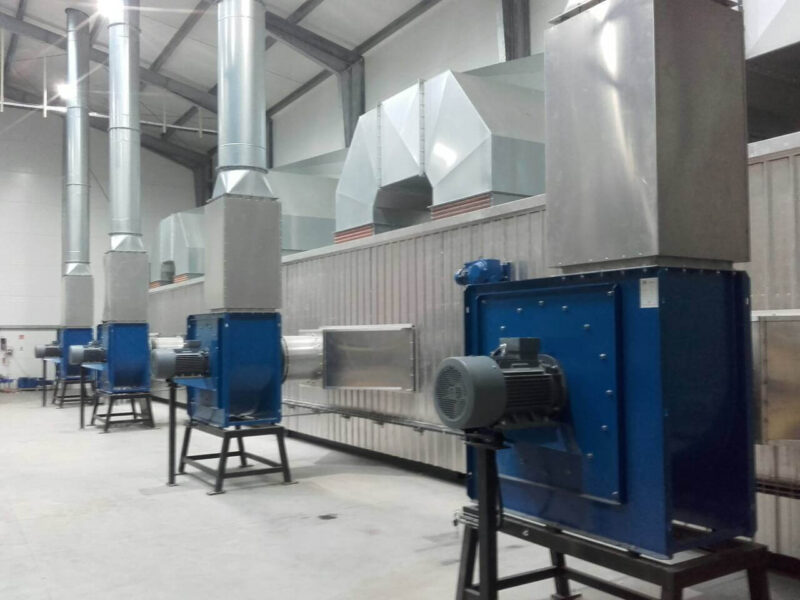

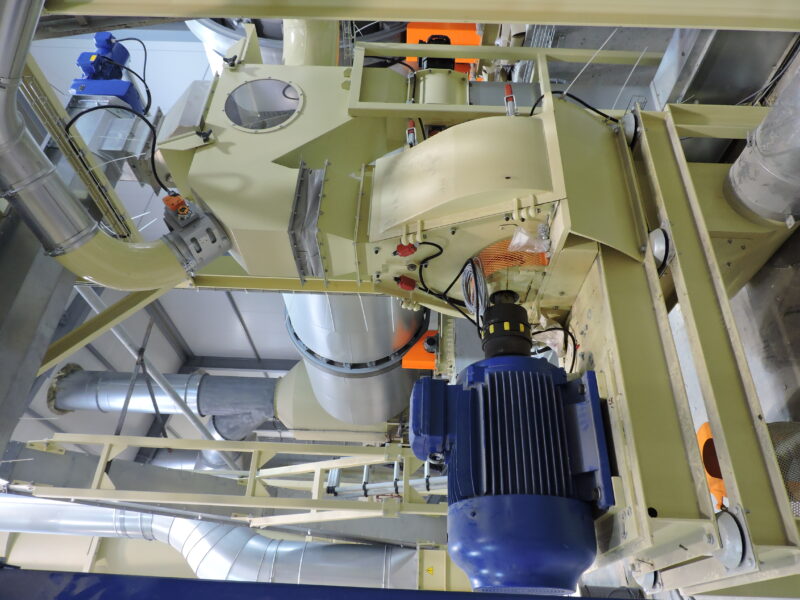

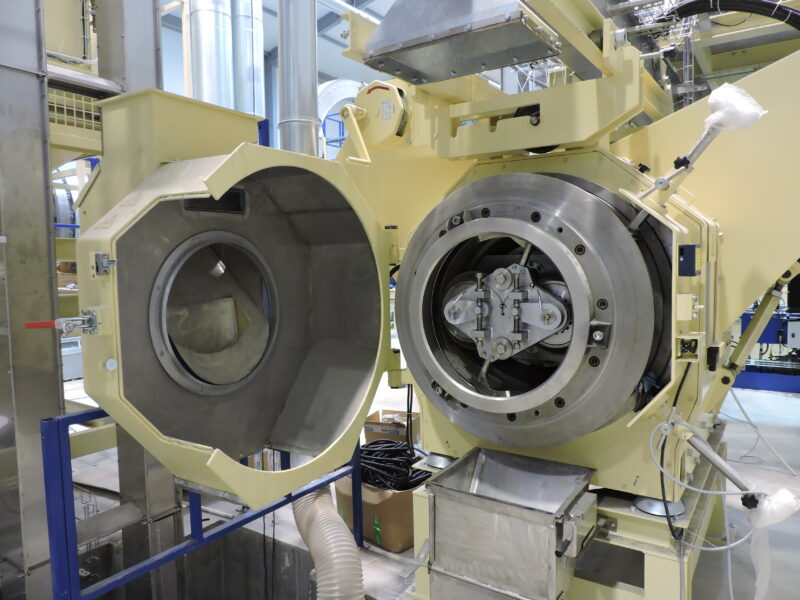

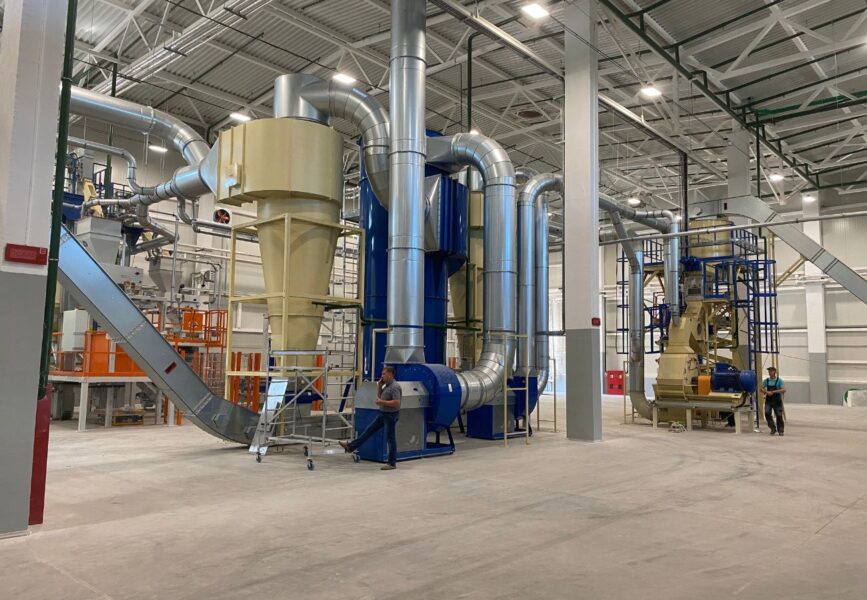

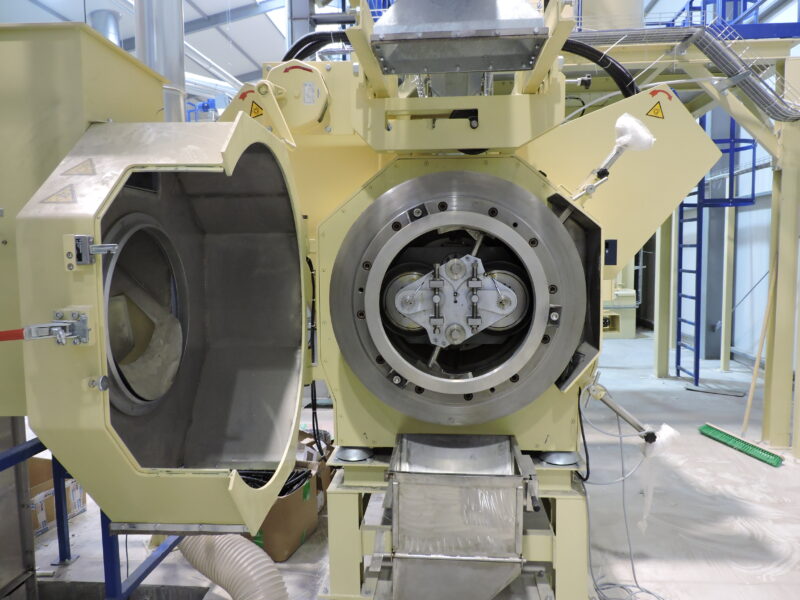

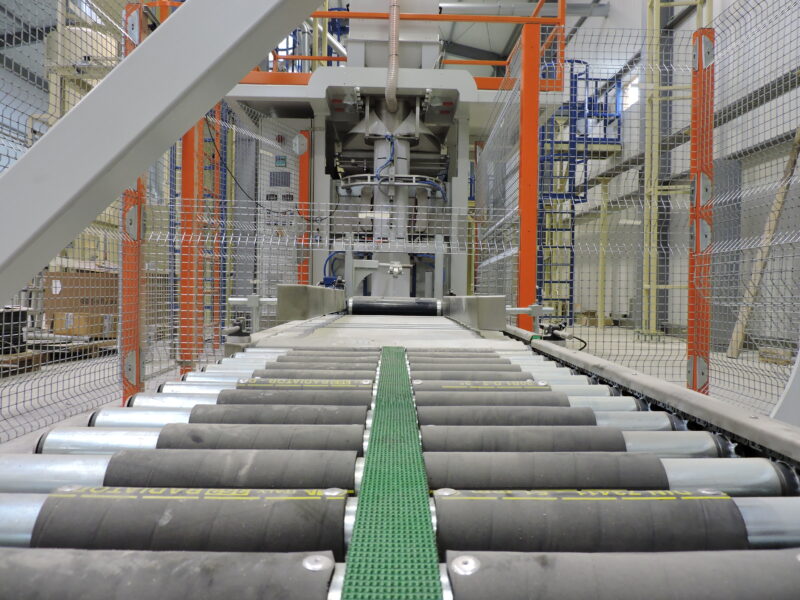

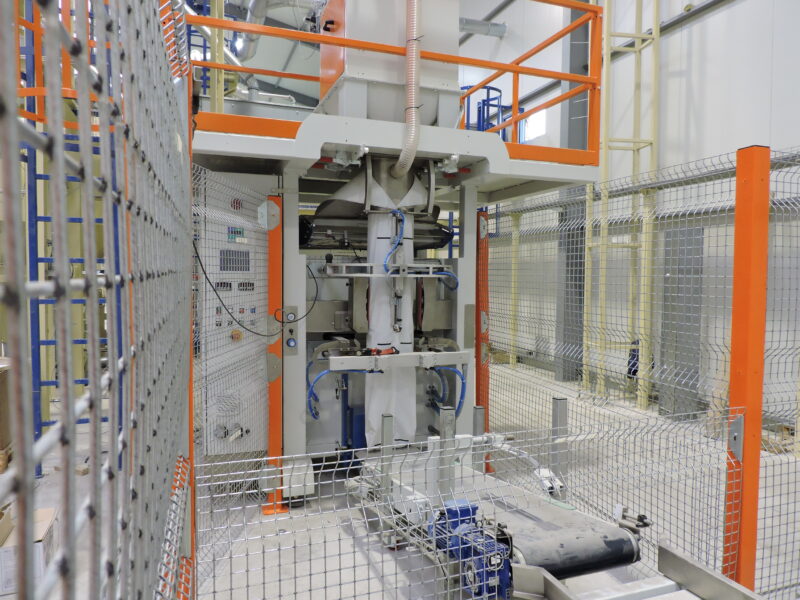

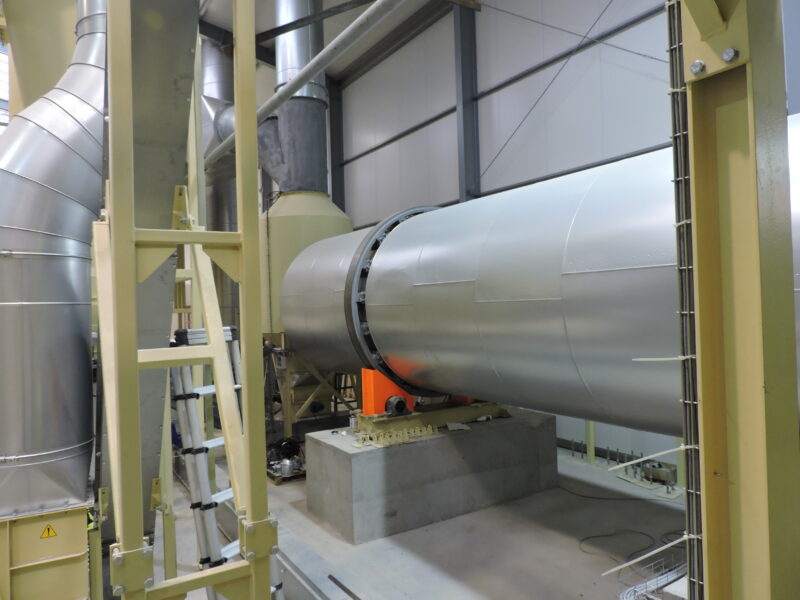

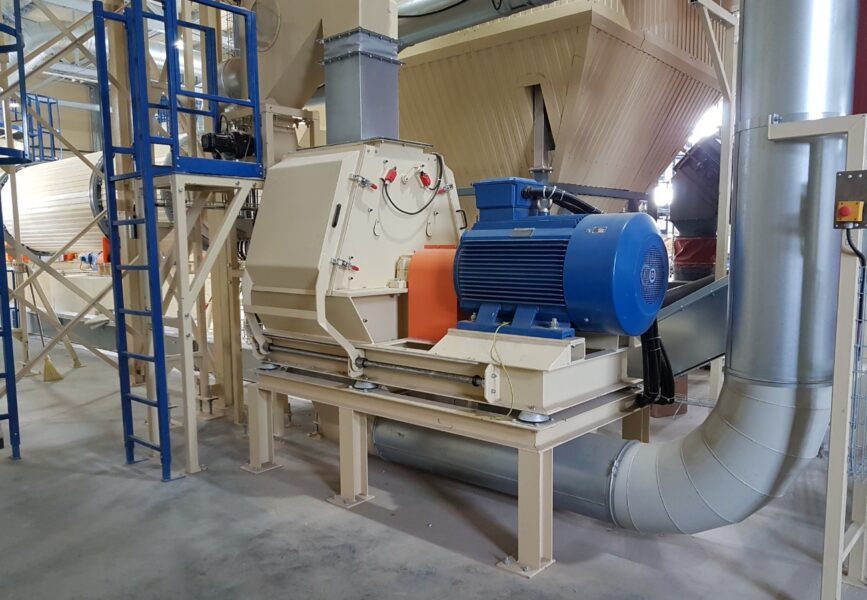

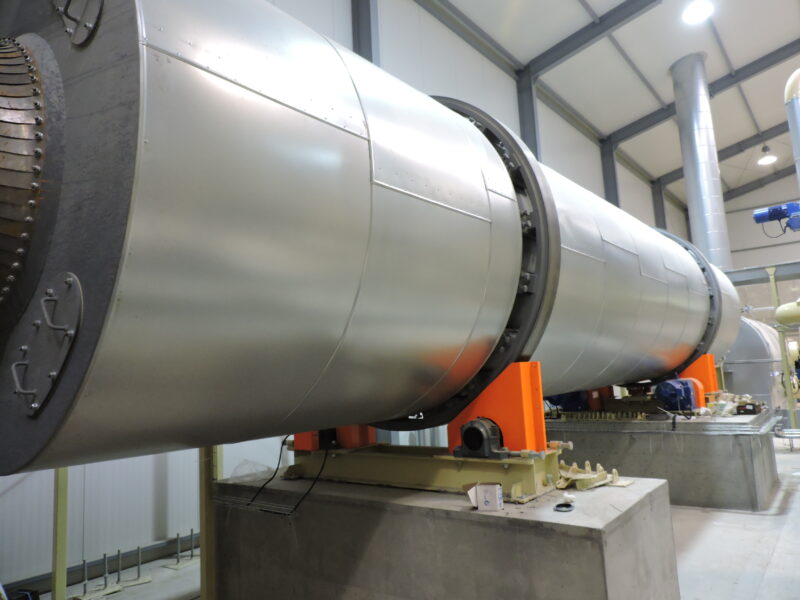

a CSB 6.0 drum dryer with a CPKS 7 wet-fuel furnace, CMB series hammer mills, CUPMdG 6.0 final material preparation system, CSSW 25 moisture stabilization silo, two Munch RMP 650 pellet presses, VK counterflow cooler, CPWP 6 pellet screener, pellet storage bin with Big-Bag packing option (CSGP 2400), CSAP 6 aspiration system, a 15 kg automatic bagging line and a palletizing system with stretch wrapping by MF Tecno.

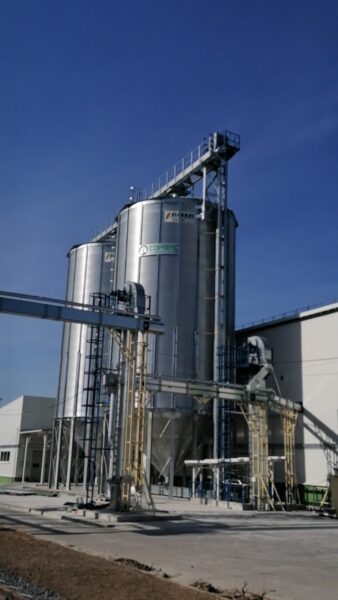

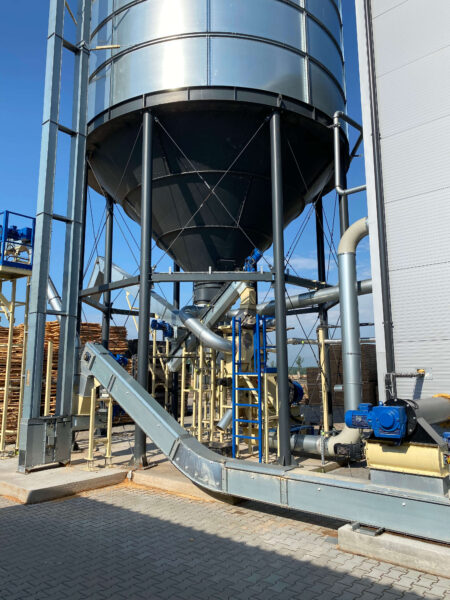

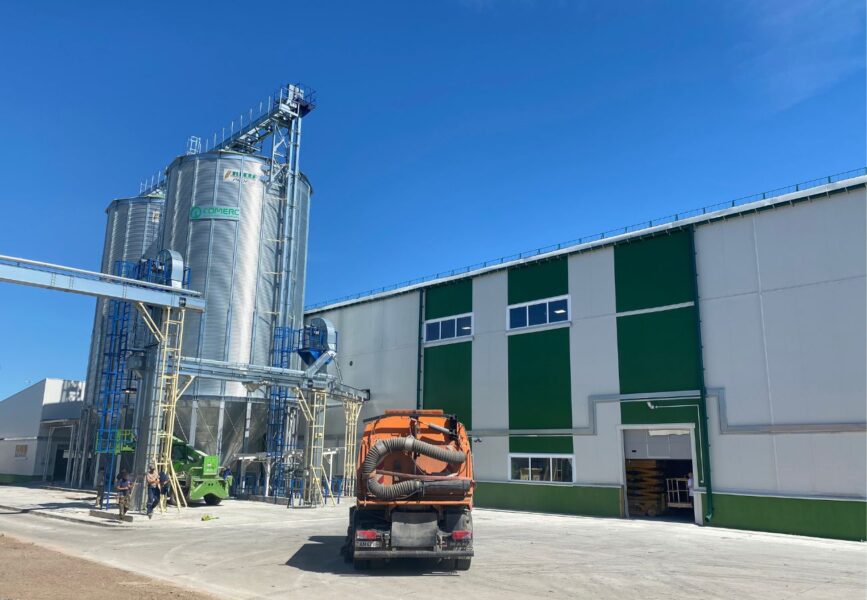

The line is also equipped with two finished-product silos of 1000 m3 each, with loading capability for trucks (top loading), containers (rear loading), and railway wagons.

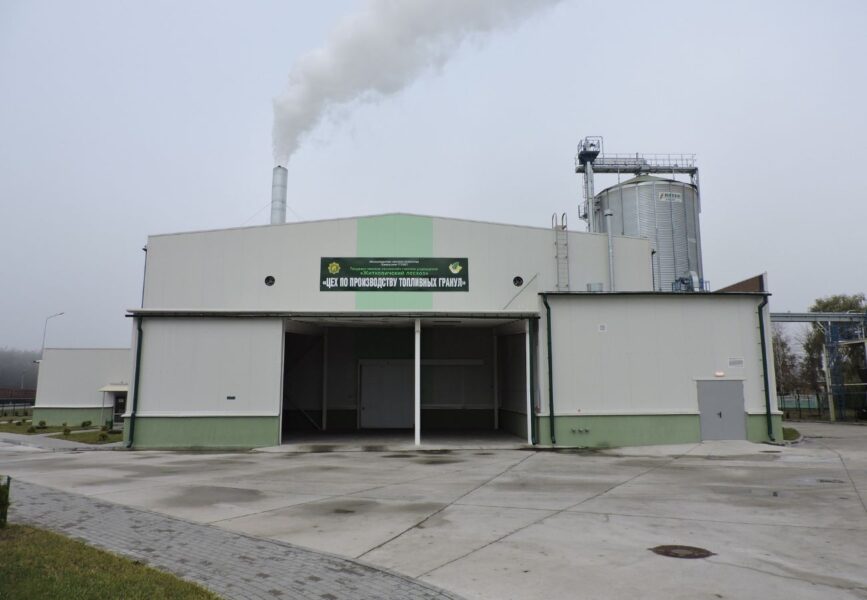

Zhytkowicze, Belarus
Completion date: 09.2020

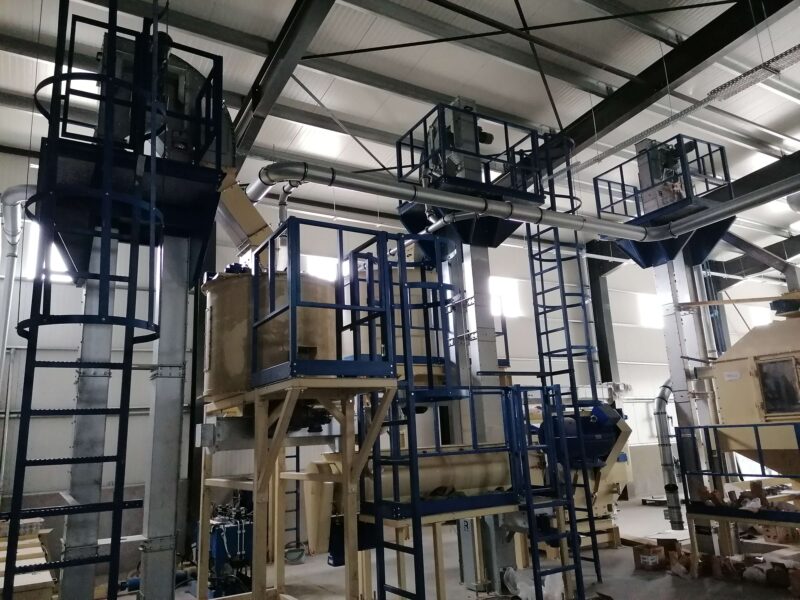

A pellet production line with a capacity of 3.0–3.5 t/h from wet chips and sawdust. Key equipment includes:

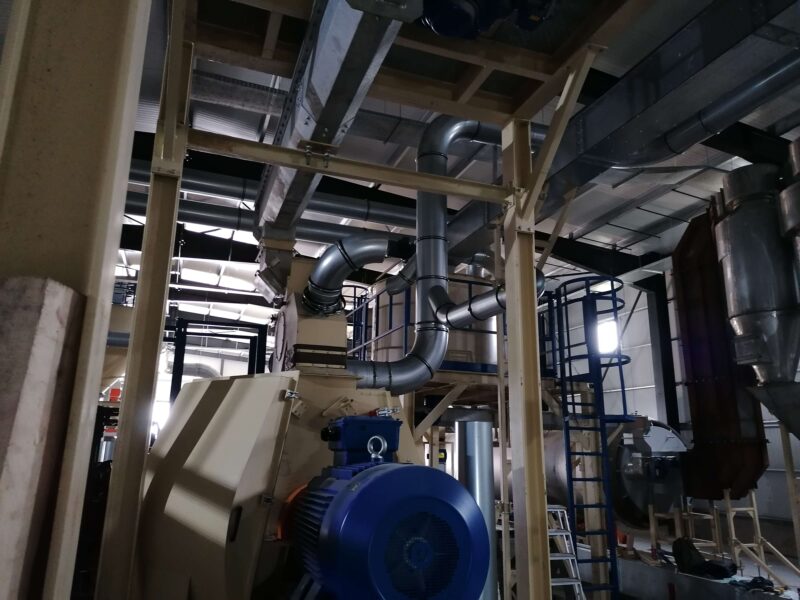

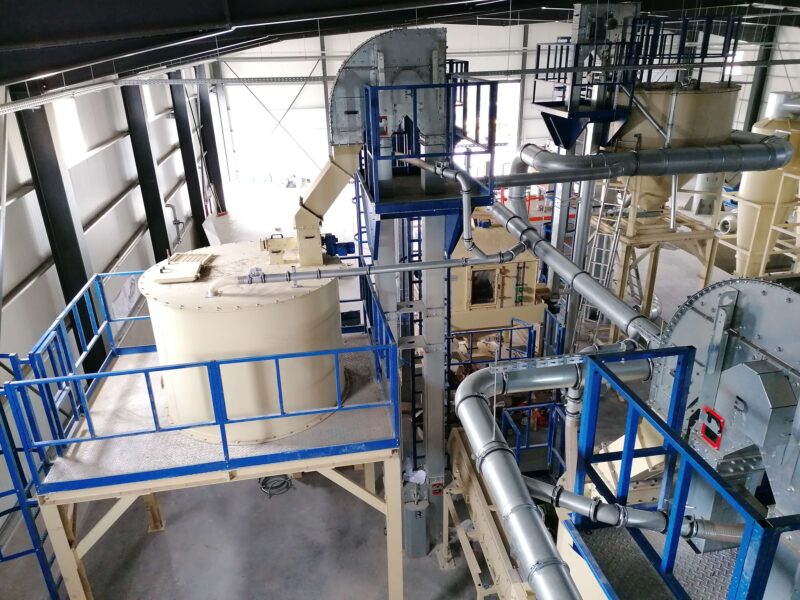

CSB 3.5 drum dryer with CPKS 4.5 wet-fuel furnace, CMB hammer mills, CUPMdG 3.5 final preparation system, two Munch RMP 520 pellet presses, VK counterflow cooler, CPWP 3 pellet screener, CSGP 2400 Big-Bag packing silo, and CSAP 3 aspiration system.

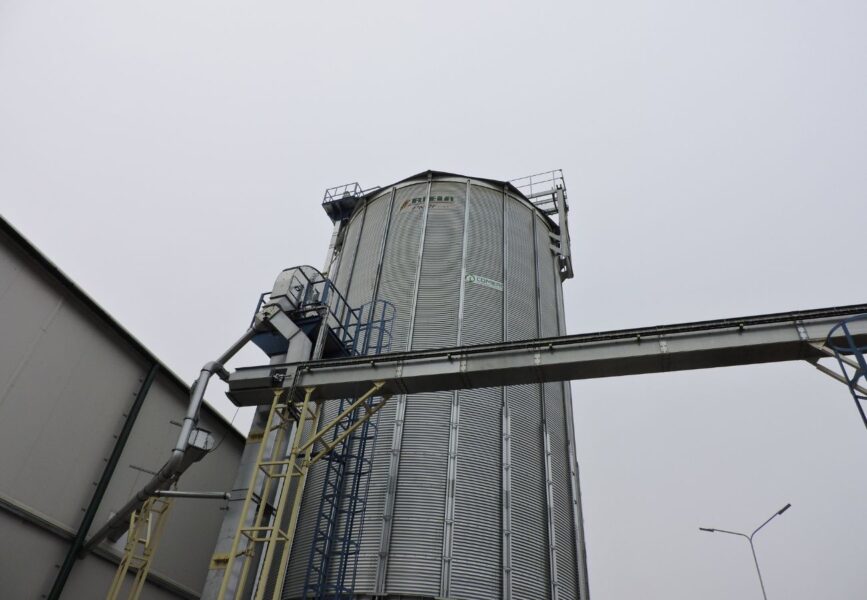

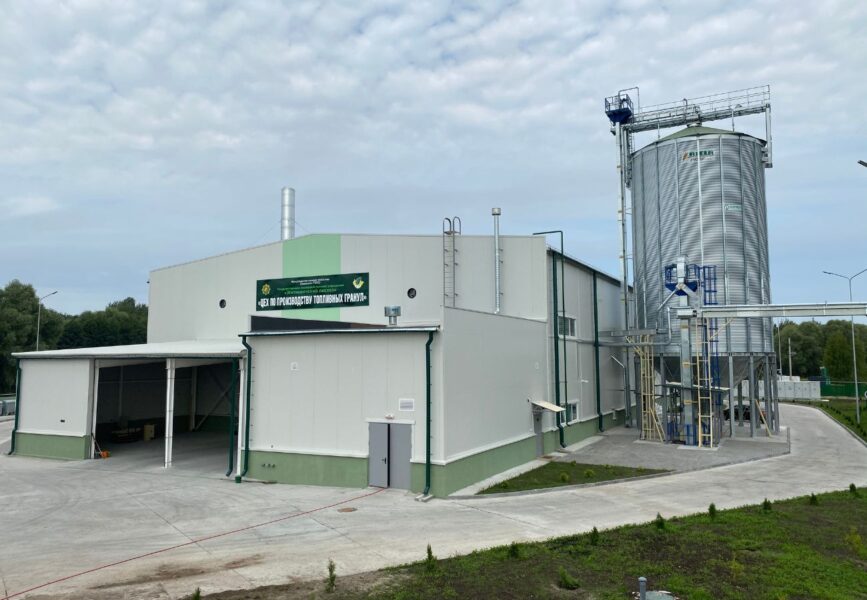

The line also includes a finished-product silo of 1000 m³ with truck and rail loading capability.
Rubtsovsk, Russia
Completion date: 30.04.2018
Pellet production line (2.5–3.0 t/h) from wet sawdust. The main equipment includes:
CSB 3.0 drum dryer, pellet press by CPM Europe B.V., and furnace by Axis Technologies.
Obrzycko, Poland
Completion date: 15.02.2018 r.
Pellet production line (2.5–3.0 t/h) from wet sawdust. The main equipment includes:
CSB 3.0 drum dryer, Münch RMP 650 pellet press, and a fully automated MF Tecno packing line with palletizing robot.
Piotr Radziszewski
Pellet production line (up to 3 t/h) from sawdust and wood chips. Main equipment includes:

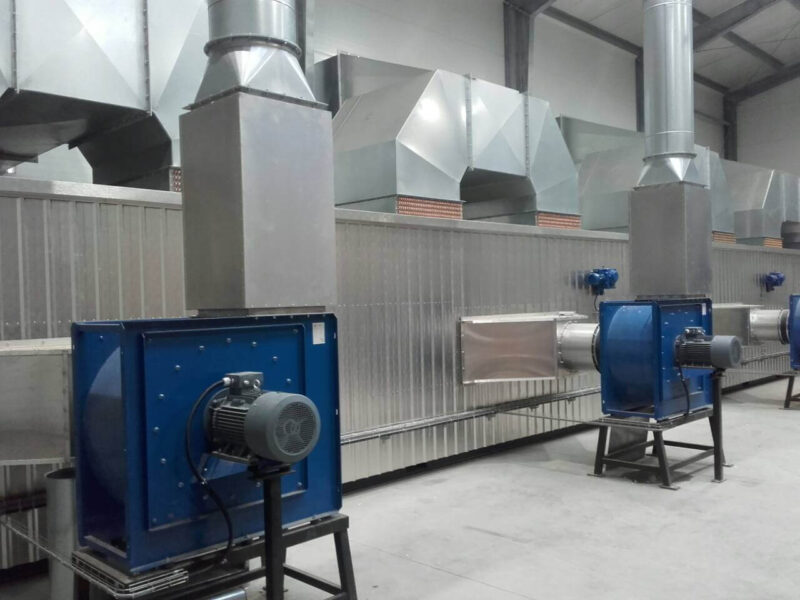

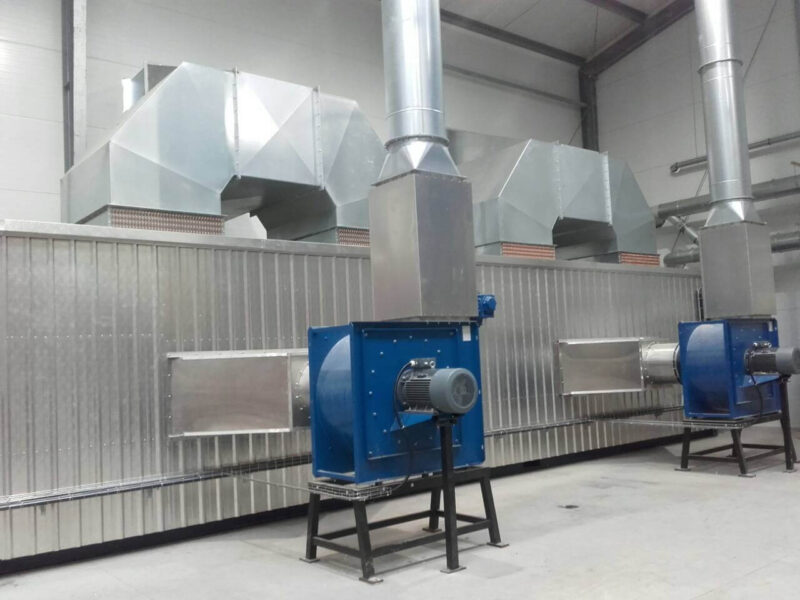

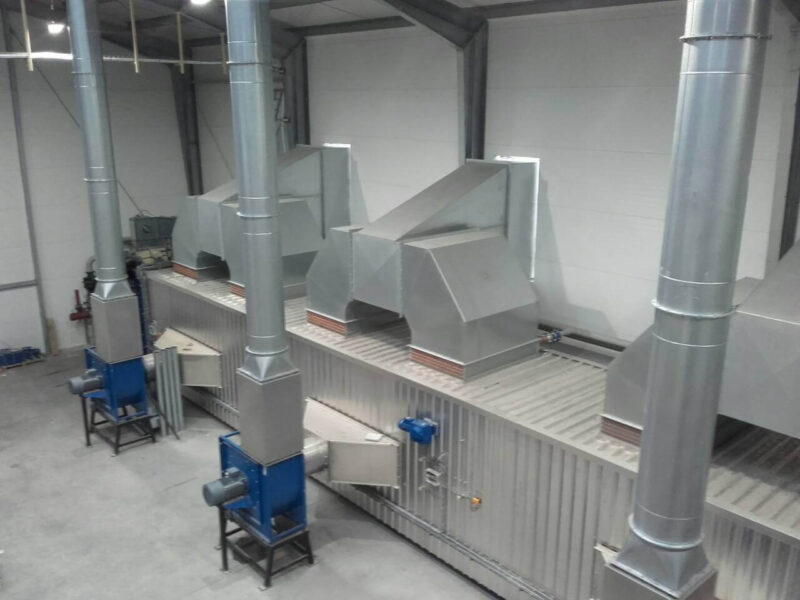

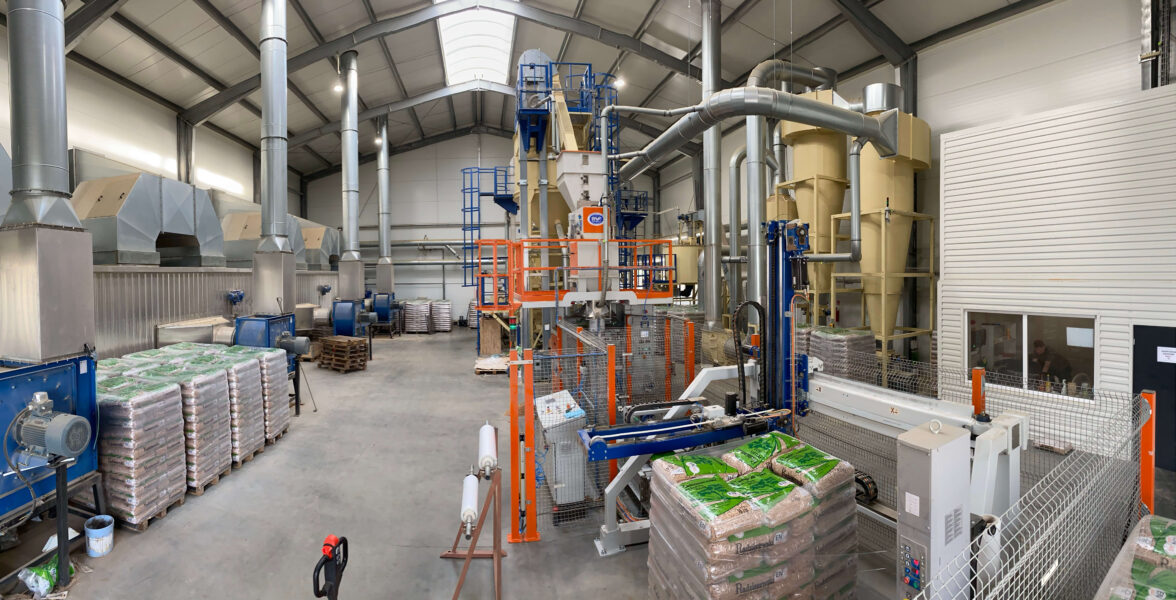

CMS belt dryer, Intermet wet-biomass boiler, CMB hammer mill for wet materials, CUPMdG preparation system, RMP 650 pellet press, VK counterflow cooler, CPWP 3 screener, CSGP 2400 Big-Bag silo, CSAP 3 dust aspiration system, and MF Tecno 15 kg automatic packing line with palletizing robot and stretch wrapping.
Genex
Pellet production line with a capacity of 3.0 t/h from wet chips and sawdust. Main equipment includes:
CSB 3.5 drum dryer with CKS 3.5 dry-fuel furnace, CMB hammer mills, CUPMdG 3.5 final preparation system, CPM 660/108 DD pellet press, VK counterflow cooler, CPWP 3 screener, CSGP 2400 Big-Bag silo, CSAP 3 aspiration system, and MF Tecno fully automated 15 kg packing and palletizing line.
